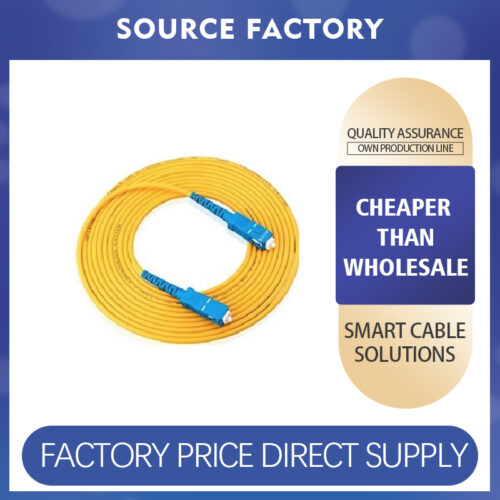

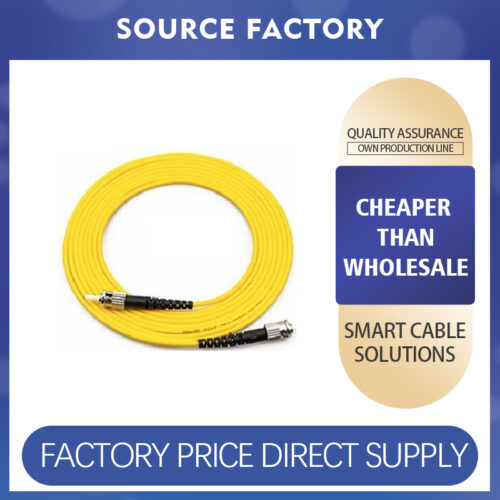

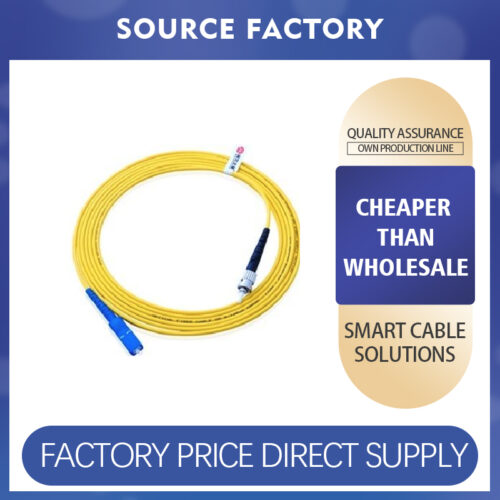

Single-core single-mode fiber optic patch cord

Single-core, single-mode fiber optic patch cables are high-performance transmission media used to connect optical signals between devices in fiber-optic communication systems. These cables utilize high-quality G652D or G657A single-mode optical fibers and are equipped with standard fiber optic connectors (such as ST, SC, FC, and LC). They feature low insertion loss and high return loss and are widely used in communication rooms, FTTH, fiber-to-the-home (FTTH), fiber-optic test equipment, and fiber-optic local area networks.

Category:

Product Features:
1. Complies with international standards ISO/IEC 11801 and TIA/EIA 568, and has passed third-party certification testing.
2. Utilizes high-precision ceramic ferrules with minimal concentricity error and inner diameter.
3. Insertion loss ≤ 0.3dB, return loss PC ≥ 50dB.
4. Interchangeability ≤ 0.2dB, repeatability ≤ 0.2dB after 1000 cycles.
5. Minimum bend radius: 240mm.
6. Operating temperature: -25°C to +70°C.

Model Name Lengths (Available) Remarks
ML-ST/ST-B1 Single-Core Single-Mode Fiber Patch Cord ST-ST (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-ST/SC-B1 Single-Core Single-Mode Fiber Patch Cord ST-SC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-ST/FC-B1 Single-Core Single-Mode Fiber Patch Cord ST-FC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-SC/SC-B1 Single-Core Single-Mode Fiber Patch Cord SC-SC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-SC/FC-B1 Single-Core Single-Mode Fiber Patch Cord SC-FC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-FC/FC-B1 Single-Core Single-Mode Fiber Patch Cord FC-FC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Single-core single-mode (Bagged)
ML-LC/LC-B1 Dual-Core Single-Mode Fiber Patch Cord LC-LC (Telecom Grade) 3M / 5M / 10M / 15M / 20M / 30M Dual-core single-mode (Bagged)
ML-LC/SC-B1 Dual-Core Single-Mode Fiber Patch Cord LC-SC (Telecom Grade) 3M / 5M / 10M / 15M / 20M / 30M Dual-core single-mode (Bagged)
ML-LC/FC-B1 Dual-Core Single-Mode Fiber Patch Cord LC-FC (Telecom Grade) 3M / 5M / 10M / 15M / 20M Dual-core single-mode (Bagged)
ML-LC/ST-B1 Dual-Core Single-Mode Fiber Patch Cord LC-ST (Telecom Grade) 3M / 5M / 10M / 15M / 20M Dual-core single-mode (Bagged)
