Patch Panel/Cable Management Panel

Patch panels are essential components in structured cabling systems, designed to provide a centralized point for managing and connecting incoming and outgoing network cables. They facilitate easy organization, maintenance, and troubleshooting of network connections. Our patch panels are compatible with Cat5e, Cat6, and higher standards, featuring durable materials and precision-engineered contacts to ensure optimal signal integrity and minimal crosstalk.

Category:

Product Features:

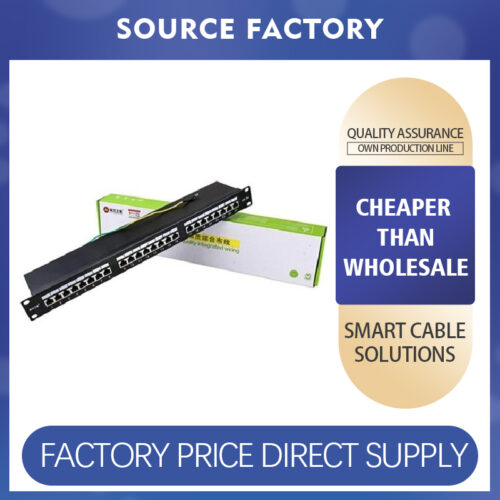

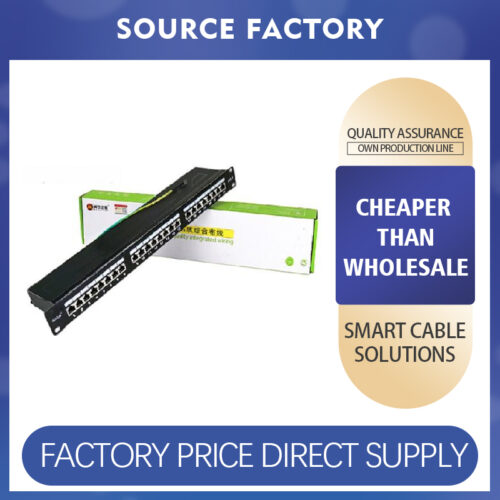

Category 5e 24-bit/Category 6 24-bit/Category 5e 48-bit/Category 6 48-bit Non-Hidden RJ45 Patch Panel: Integrated RJ45 Patch Panel
1. Complies with international standards ISO/IEC 11801, TIA/EIA 568, and has passed third-party certification testing. 2. Standard 1U patch panel, installable in a standard 19″ cabinet, suitable for horizontal cabling and interoperability between devices.
3. Available in modular and integrated configurations, with individual modules removable and installable to meet diverse user requirements.
4. Supports Category 5e, Category 6, and Category 6A solutions, facilitating future system upgrades.
6. Information modules utilize solderless pin insertion technology, ensuring environmental friendliness.
7. Modular patch panel compatible with fiber optic adapters via port adapter brackets.
8. Comprehensive and clear labeling system facilitates information port management.
9. Cable management support on the back facilitates installation, maintenance, and management.
10. Contact resistance: ≤2.5mΩ
Insulation resistance: ≥1000mΩ
Dielectric strength: 1000V (AC750V) for 1 minute without breakdown or arcing.
11. Storage temperature: -40°C to 70°C
Operating temperature: -40°C to 60°C

Model Name Material Remarks
ML-5E-24T Cat5e Patch Panel + Backboard Steel shell, PC module, phosphor bronze PIN pins with gold plating Color box
ML-6-24T Cat6 Patch Panel Steel shell, PC module, phosphor bronze PIN pins with gold plating Color box

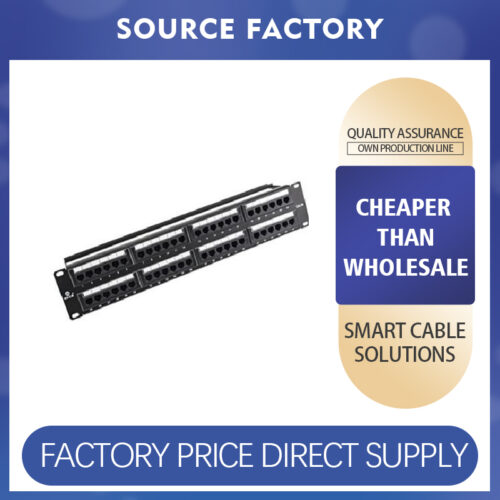

ML-5E-48T Cat5e 48-Port Unshielded Patch Panel Steel shell, PC module, phosphor bronze PIN pins with gold plating Color box

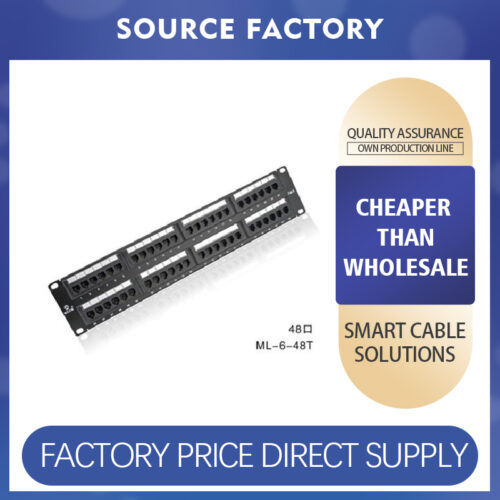

ML-6-48T Cat6 48-Port Unshielded Patch Panel Steel shell, PC module, phosphor bronze PIN pins with gold plating Color box
ML-K-24 Universal Empty Patch Panel Steel shell Color box
ML-K-24A Cat5e, Cat6 Pass-through 24-Port Empty Patch Panel Steel shell Color box
ML-K-24B Cat5e, Cat6 Modular 24-Port Empty Patch Panel Steel shell Color box
